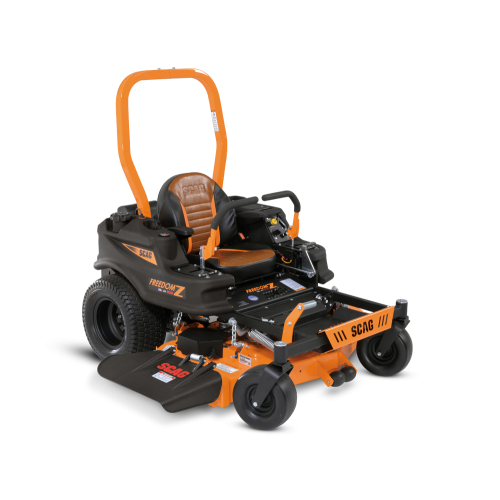

Scag - Mowers - Freedom Z 52″

Freedom Z 52″

The entire Freedom Z lineup of zero turn mowers from SCAG has been designed to help you do one thing and one thing only – get more free time and enjoy more freedom from lawn care while providing top-quality results at the same time!

Engineered to offer commercial mowing capabilities at an affordable price point, this zero turn mower takes advantage of the best in American engineering (and American steel) to produce a zero turn lawnmower that’s going to be a workhorse for your lawn care needs for years and years to come.

With a mowing deck that sits at 48 inches wide (4 feet) you’ll be able to quickly handle large lawns, shaving a tremendous amount of time off of your lawn care routine just because of this new oversized mowing deck.

Combine that with the efficiency and high-speed of a zero turn mower – one that’s powered by a Kohler 7000 Series mower (with either 22 hp or 24 hp) – and you’re looking at something really special here.

Easy to control, easy to maneuver, and designed to be almost infinitely customizable so that every time you sit on the Freedom Z 48 inch mower it feels custom tailored to you – with controls always at your fingertips – it doesn’t get much better than this.

Features

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

SPEEDS UP TO 8 MPH

The ZT drive system’s dual hydro transaxles with all-metal gears and spin-on oil filters to deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

RIDE IN COMFORT

This ultra-comfortable and adjustable (with tools) and contoured for improved comfort, and features armrests.

EASY UP, EASY DOWN

Foot-pedal cutter-deck lift is spring-assisted and makes raising the cutter deck smooth and easy.

RELIABLE POWER, UP TO 24 HP

The 24 hp and 26 hp Kohler® 7000 Series engines with PRO Performance filtration provide smooth, reliable power.

Product Details

• Up to 8 MPH forward and 5 MPH reverse speeds deliver maximum productivity. Fast ground speeds will make short work of your residential acreage or commercial property.
• Fully welded and fabricated, unitized steel, commercial grade main frame design is stronger than “bolt together” or stamped frame designs. This frame is built to last.
• 48″ & 52″(cutting width) cutter decks are constructed with a 10-gauge top with an 11-gauge reinforcement plate around the spindle mounting area for extra support. The cutter deck skirt is 7-gauge for additional strength. This is not a mass produced, stamped steel deck. This is a commercial grade, fully fabricated and welded heavy steel cutter deck.
• Power your Freedom with commercial grade, full pressure lubrication engines. 24 HP or 26 HP Kohler 7000 PRO Series V-Twin engine options.
• Dual Hydro-Gear ZT-2800 transaxles put solid, reliable power to the ground. Integrated transaxle has charge pumps and spin-on oil filters and steel plate oil filter guards to protect filters from damage. 1-year commercial warranty on transaxles; 3-year non-commercial application warranty on transaxles.
• Custom, bolstered seat adds another level of comfort to the 48″ & 52″ Scag Freedom Z. Fold-up arm rests are standard.
• Ogura G1 PTO clutch brake has lots of torque (74 ft/lbs) for smooth blade engagements and solid holding power in heavy cutting conditions. Adjustable air gap delivers long component life.
• Low-maintenance mower design has few grease points, saving you maintenance time and giving you the freedom to do other things.
• Fixed-position ROPS (Roll Over Protection System) is standard equipment along with retractable seatbelts. ROPS provides additional operator safety.
• Compact mower size enables you to take the Freedom Z into tight places. The Freedom Z also occupies less space in your garage or on the trailer, leaving more room for other tools and toys.
• 6.5 gallon fuel capacity gives you the freedom to cut vast amounts of grass without having to stop and refuel. The fuel tank features an extra large filler neck for easy refueling.
• Large drive and caster tires ensure solid traction and a smooth ride.
  -Front caster tires: 11 x 6 – 5
  -Drive tires: 20 x 10 – 10
• Extra large foot plate for improved operator comfort and easier mounting and dismounting of the mower. The pierced, extruded metal tread ensures solid footing.
• Easily adjust cutting heights while seated via. Wide range of adjustment from 1″ to 4-1/2″ in 1/4″ increments.
• Foot pedal deck lift features a large knurled peg for “no slip” deck lifting. Spring-assisted design makes lifting the cutter deck easy and smooth.
• The Scag “Simply the Best” warranty stands behind you and your mower for years of worry-free service. Unlike other mowers in its price range, the Freedom Z carries a commercial warranty as well as an estate owner / home owner warranty.
• Spring-loaded, self-adjusting idler arms effortlessly keep all belts in constant adjustment for maximum life and no maintenance.
• All steel pulleys are stronger than plastic pulley designs. This is a Scag….you will not find plastic pulleys on the Freedom Z. Steel dust and debris covers are fitted over idler pulley bearings and spindles to keep foreign material out, extending bearing life.
• Comfortable, adjustable (with tool), fully cushioned seat with padded arm rests. Retractable seat belts are standard equipment.
• Padded steering control levers with ultra-smooth dampers for smooth, precise responsiveness. Levers are adjustable.
• Steering dampers are designed and positioned for smooth steering lever operation and minimal control effort.
• 4-corner cutter deck adjustment mechanisms allow for easy deck leveling and pitch adjustment to deliver a smooth, even cut.
• Heavy-duty, no maintenance blade drive spindles provide reliable performance day in and day out; aluminum housings and sealed ball bearings.
• Interlocked parking brake system prevents movement when parked on inclines. The mower cannot be driven when the brake is applied. This prevents premature brake wear.
• Operator friendly instrument panel is conveniently located just to the left of the operator. It includes an ignition switch, mower engagement switch, and separate choke and throttle controls.
• User-friendly mower design allows quick access to the engine and filters, for easy maintenance.
• Cup holder and storage bin are molded into the fuel tank to provide added operator convenience and comfort.
• Hydraulic oil reservoir and maintenance-free battery are enclosed within the left side tank molding to prevent external damage and to provide a sleek, clean appearance.
• Engine oil drain makes oil changes easy.
• High-quality electrical components such as switches and tightly woven, custom wiring harness looms are used throughout the Scag mower line for dependability and long life.
• Digital hour meter located within easy sight of the operator while in the operating position.
• Productive, time saving accessories like a grass collection system and high-powered halogen lights are available for the Freedom Z.
